Topographical Survey & Contour Mapping
Phase 2: Technical Planning & Compliance
Service Type : Engineering
Precision Land Analysis for Krabi’s Diverse Terrain
In a geographic landscape defined by steep limestone karsts, coastal slopes, and intense tropical monsoon seasons, designing a luxury project based on a flat, two dimensional map is a massive liability. Failing to secure precision three dimensional terrain data leads directly to foundation failures, civil engineering errors, and severe budget overruns. At Krabi Contractor, we treat topography as the foundation of project safety and financial control, utilizing advanced geodetic surveying equipment to construct a high fidelity digital twin of your land parcel.
Why Contour Mapping is Critical in Krabi
- Centimeter Level Geodetic Surveying
- Hydrological Drainage and Runoff Modeling
- Earthworks Optimization (Cut and Fill Engineering)
- Elevation Based View Optimization

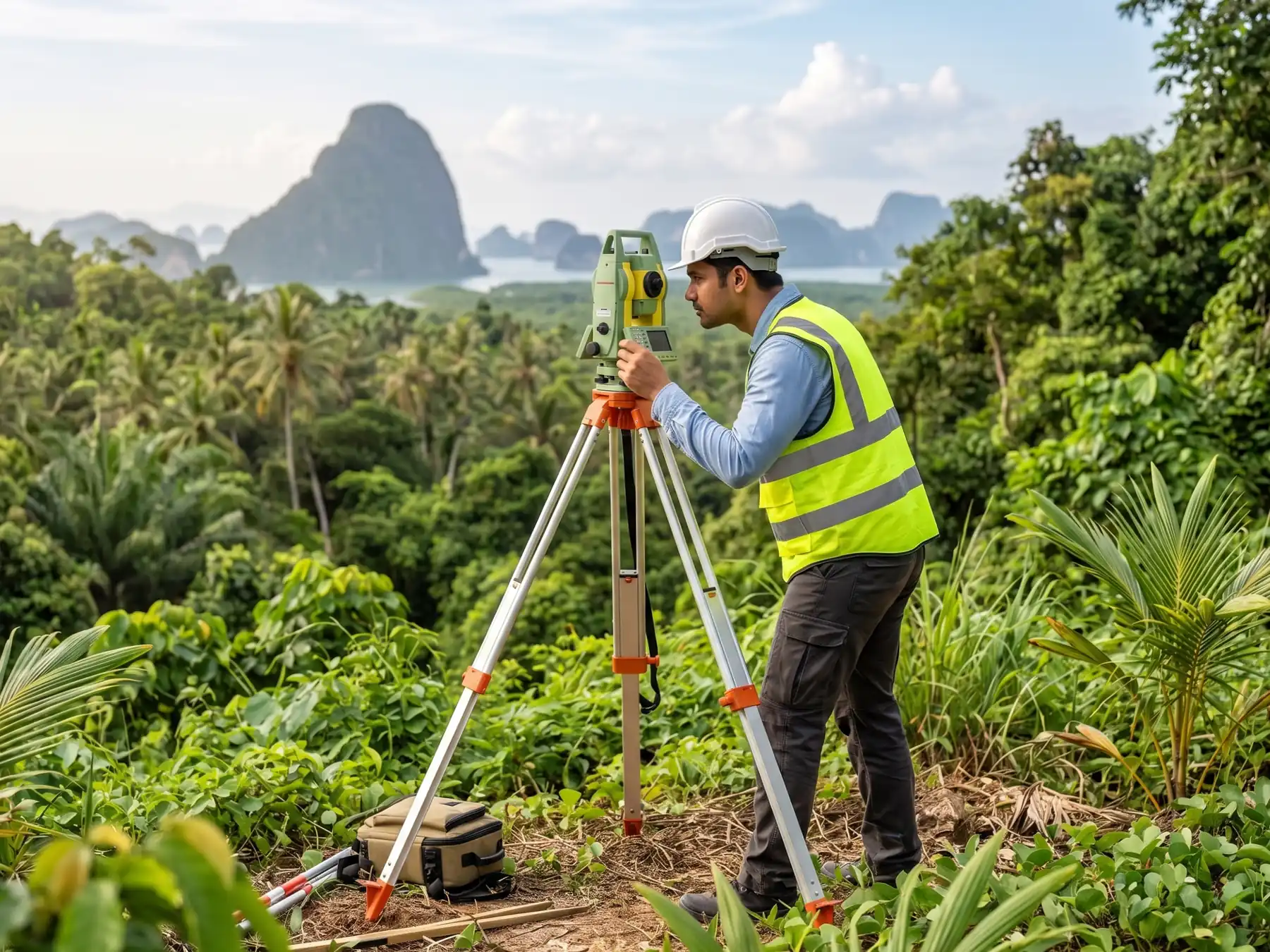

Our team of licensed surveyors deploys advanced Total Station technology and RTK GPS systems to capture precise spatial data points across your land, establishing absolute accuracy down to the centimeter.
During the tropical rainy season, rainfall volumes can be immense. We use high precision elevation data points to map natural drainage lines across your plot, enabling our engineers to design infrastructure that redirects storm runoff, prevents localized flooding, and mitigates long term soil erosion.
Excavation and earthmoving represent major costs in tropical construction. Our precision contour maps allow our civil engineers to calculate exact subterranean soil volumes, balancing cut and fill equations to save clients millions of Baht in unnecessary soil transport and redundant retaining wall construction.
In the luxury residential market, the view is a primary asset. We map exact elevation baselines to calculate the optimal architectural floor plate lines. This ensures every window, terrace, and infinity pool is perfectly positioned to capture views of the Andaman Sea or Krabi’s iconic limestone cliffs, while protecting those views from future neighboring developments.
Precision Topographical Workflow
- Raw Site Data Collection via RTK GPS
- Boundary and Chanote Pin Verification
- 3D Contour Line and Terrain Generation
- Direct Architectural CAD Integration
Regional Realities and Strategic Value
Our topographical surveys do more than measure elevation, they verify your exact legal boundaries. We cross reference physical boundary marker stones directly with official Land Department Chanote records, ensuring your architectural concepts sit completely within your legal property lines. The raw spatial data is converted directly into clean CAD formats, ensuring your architectural design phase addresses real world slopes, natural limestone features, and utility access points right from the start, completely eliminating expensive on site structural adjustments.
Professional Fees and Engagement
Bespoke Service Fee
Starts at 20,000 THB for land parcels up to 2,000 square meters, adjusted based on slope complexity and density of local vegetation.
The KC Advantage
Delivers an absolute digital layout of your land, eliminating the pre construction guesswork that causes foundation adjustments and civil engineering structural delays during the active building phase.
Request Your Geodetic Survey
Ensure your architectural designs are grounded in precision data. Email our surveying division with your Chanote deed registration, Google Maps location markers, and recent site photography to secure a fixed price proposal.
